Usually, the lead time for magnets is 30 days. It will be shortened or lengthen depends on the season or customer’s requests.

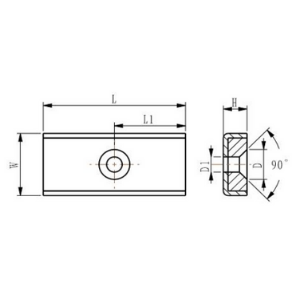

Model(P/N.:) | L(mm) | L1(mm) | W(mm) | H(mm) | D1(mm) | D2(mm) | Weight(kg) | Breakaway(kg) |
NCM-A10 | 10 | 5.00 | 13.50 | 5 | 3.30 | 6.50 | 5 | 4 |
NCM-A15 | 15 | 7.50 | 13.50 | 5 | 3.30 | 6.50 | 7 | 7 |
NCM-A20 | 20 | 10.00 | 13.50 | 5 | 3.30 | 6.50 | 9 | 8 |
NCM-A30 | 30 | 15.00 | 13.50 | 5 | 3.30 | 6.50 | 14 | 16 |

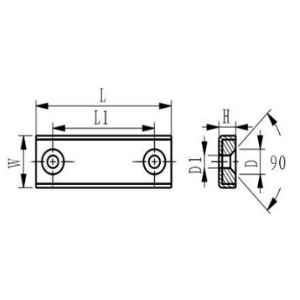

Model(P/N.:) | L(mm) | L1(mm) | W(mm) | H(mm) | D1(mm) | D2(mm) | Weight(kg) | Breakaway(kg) |
NCM-B40 | 40 | 30 | 13.50 | 5 | 3.30 | 6.50 | 19 | 17 |
NCM-B50 | 50 | 40 | 13.50 | 5 | 3.30 | 6.50 | 23 | 27 |
NCM-B60 | 60 | 50 | 13.50 | 5 | 3.30 | 6.50 | 28 | 30 |
NCM-B80 | 80 | 70 | 13.50 | 5 | 3.30 | 6.50 | 38 | 33 |
NCM-B100 | 100 | 90 | 13.50 | 5 | 3.30 | 6.50 | 47 | 36 |
NCM-B120 | 120 | 110 | 13.50 | 5 | 3.30 | 6.50 | 57 | 40 |
