Our global supply chain foundation ensures rapid delivery and risk resilience, while uncompromising quality control paired with inclusive pricing redefines industry value standards. Choosing us means choosing certain returns through speed and savings.
Usually, the lead time for magnets is 30 days. It will be shortened or lengthen depends on the season or customer’s requests.

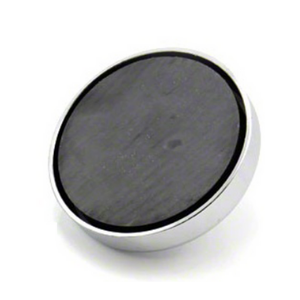

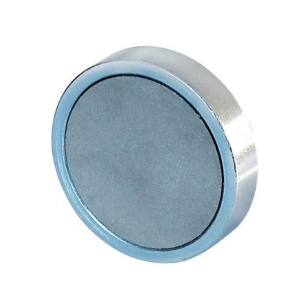

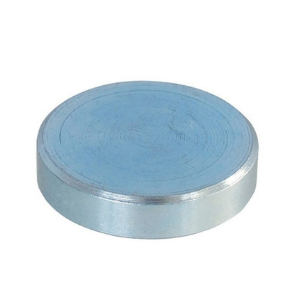

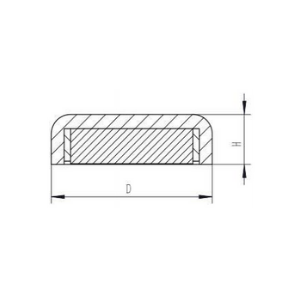

Model(P/N.:) | D(mm) | H(mm) | Weight(gram) | Breakaway(kg) |
FPM-A10 | 10 | 4.00 | 3.00 | 0.38 |
FPM-A13 | 13 | 4.50 | 5.00 | 0.38 |
FPM-A16 | 16 | 4.50 | 6.00 | 1.70 |
FPM-A20 | 20 | 6.00 | 11.00 | 2.50 |
FPM-A25 | 25 | 7.00 | 22.00 | 2.50 |
FPM-A32 | 32 | 7.00 | 32.00 | 2.50 |
FPM-A36 | 36 | 7.70 | 45.00 | 2.50 |
FPM-A40 | 40 | 8.00 | 60.00 | 2.50 |
FPM-A47 | 47 | 9.00 | 90.00 | 16.00 |
FPM-A50 | 50 | 10.00 | 110.00 | 21.00 |
FPM-A57 | 57 | 10.50 | 145.00 | 28.00 |
FPM-A63 | 63 | 14.00 | 240.00 | 32.50 |
FPM-A80 | 80 | 18.00 | 520.00 | 59.00 |
FPM-A100 | 100 | 22.00 | 940.00 | 90.00 |
FPM-A125 | 125 | 26.00 | 1700.00 | 125.00 |

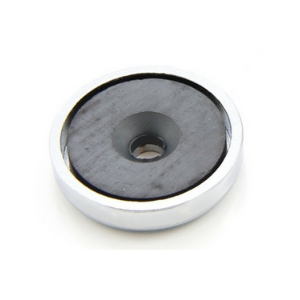

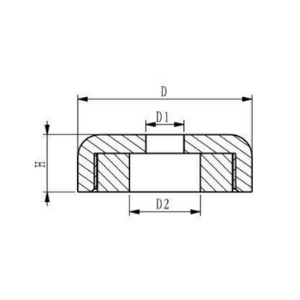

Model(P/N.:) | D(mm) | H(mm) | D1(mm) | D2(mm) | Weight(gram) | Breakaway(kg) |
FPM-B45 | 45 | 10 | 4.00 | 17.50 | 70 | 7.20 |
FPM-B50 | 50 | 10 | 8.50 | 22.00 | 90 | 18.50 |
FPM-B55 | 55 | 11 | 6.00 | 22.00 | 110 | 19.00 |
FPM-B63 | 63 | 14 | 6.50 | 24.00 | 195 | 26.50 |
FPM-B80 | 80 | 18 | 6.50 | 11.50 | 480 | 49.50 |
FPM-B100 | 100 | 22 | 10.50 | 34.00 | 820 | 66.50 |

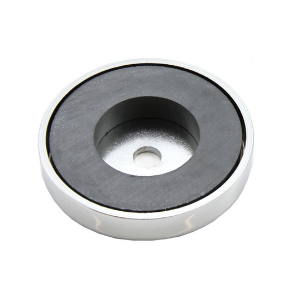

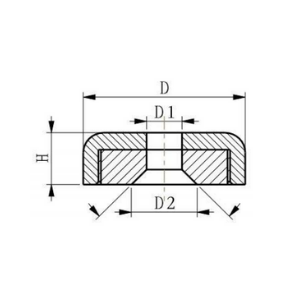

Model(P/N.:) | D(mm) | H(mm) | D1(mm) | D2(mm) | Weight(gram) | Breakaway(kg) | |
FPM-C16 | 16 | 4.50 | 3.50 | 6.50 | 4.00 | 1.40 | |
FPM-C20 | 20 | 6.00 | 4.10 | 9.40 | 9.00 | 2.70 | |
FPM-C25 | 25 | 7.00 | 5.50 | 11.50 | 17.00 | 3.60 | |
FPM-C32 | 32 | 7.00 | 5.50 | 11.50 | 27.00 | 7.20 | |
FPM-C40 | 40 | 8.00 | 5.50 | 11.50 | 52.00 | 9.00 | |
FPM-C50 | 50 | 10.00 | 6.50 | 12.00 | 90.00 | 16.20 | |
FPM-C63 | 63 | 14.00 | 6.50 | 12.00 | 195.00 | 26.10 |

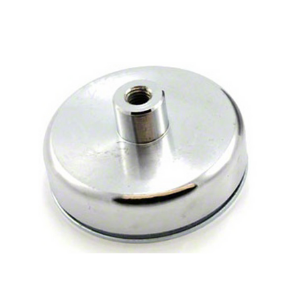

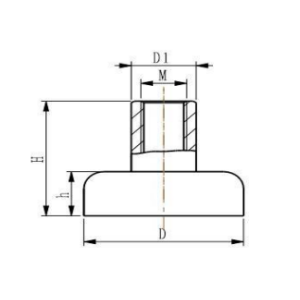

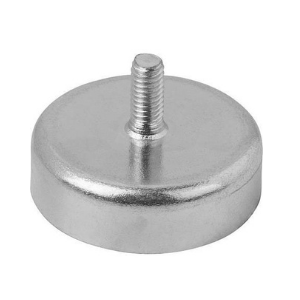

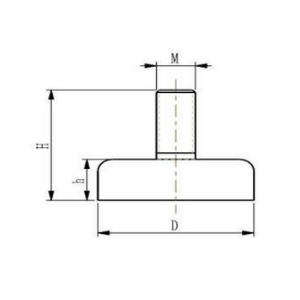

Model(P/N.:) | D(mm) | H(mm) | M(mm) | Weight(gram) | Breakaway(kg) |
FPM-D10 | 10 | 4.50 | M4×8 | 3.00 | 0.45 |
FPM-D13 | 13 | 4.50 | M5×8 | 5.00 | 1.15 |
FPM-D16 | 16 | 4.50 | M6×8 | 7.50 | 1.70 |
FPM-D20 | 20 | 6.00 | M6×10 | 16.00 | 3.00 |
FPM-D25 | 25 | 7.00 | M6×10 | 25.00 | 4.00 |
FPM-D32 | 32 | 7.00 | M6×10 | 46.00 | 8.00 |
FPM-D40 | 40 | 8.00 | M8×10 | 54.00 | 12.50 |
FPM-D50 | 50 | 10.00 | M8×10 | 100.00 | 22.10 |
Model(P/N.:) | D(mm) | H(mm) | M | Weight(gram) | Breakaway(kg) |
FPM-E10 | 10 | 4.50 | M3 | 4.00 | 0.45 |
FPM-E13 | 13 | 4.50 | M3 | 6.00 | 1.15 |
FPM-E16 | 16 | 4.50 | M3 | 7.00 | 1.70 |
FPM-E20 | 20 | 6.00 | M3 | 12.00 | 3.00 |
FPM-E25 | 25 | 7.00 | M4 | 25.00 | 4.00 |
FPM-E32 | 32 | 7.00 | M4 | 34.00 | 8.00 |
FPM-E40 | 40 | 8.00 | M5 | 62.00 | 12.50 |
FPM-E50 | 50 | 10.00 | M6 | 115.00 | 22.10 |
FPM-E63 | 63 | 14.00 | M8 | 245.00 | 32.50 |
FPM-E80 | 80 | 18.00 | M10 | 520.00 | 59.00 |
FPM-E100 | 100 | 22.00 | M12 | 940.00 | 90.00 |
FPM-E125 | 125 | 26.00 | M14 | 1720.00 | 125.00 |

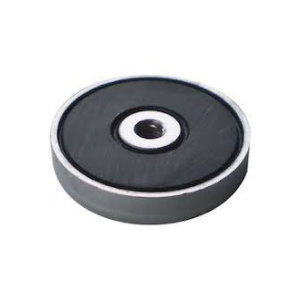

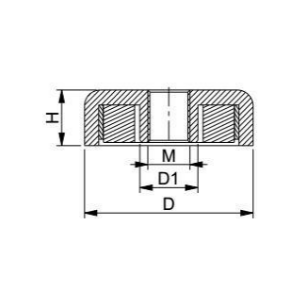

Model(P/N.:) | D(mm) | H(mm) | M | Weight(gram) | Breakaway(kg) |
FPM-F25 | 25 | 7 | M4 | 18.00 | 3.60 |
FPM-F32 | 32 | 7 | M4 | 29.00 | 7.50 |
FPM-F40 | 40 | 8 | M4 | 53.00 | 9.00 |
FPM-F50/1 | 50 | 10 | M6 | 94.00 | 17.00 |
FPM-F50/2 | 50 | 10 | M8 | 88.00 | 17.00 |
FPM-F63 | 63 | 14 | M8 | 206.00 | 29.00 |
FPM-F80/1 | 80 | 18 | M8 | 472.00 | 55.00 |
FPM-F80/2 | 80 | 18 | M10 | 466.00 | 55.00 |
